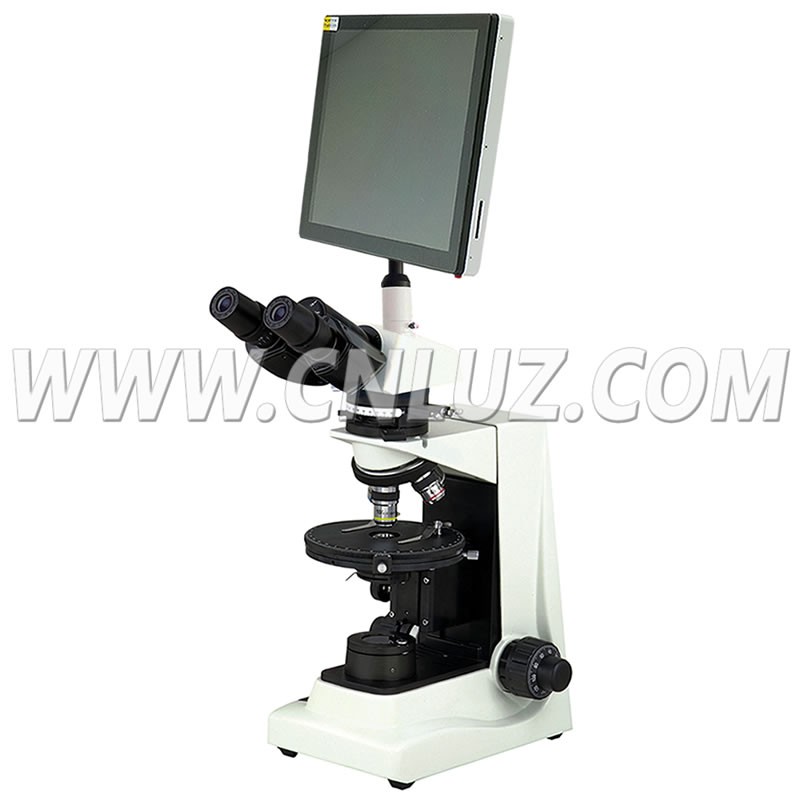

MLP.003052LCD Polarizing Microscope, 9.7'' LCD, 5M, 40~600X
  • /usr/575/images/Products/Y/57519034.jpg
  • /usr/575/Picture/Y/11547.jpg
  •
  •

Polarizing Microscope, With features of easy operation, complete functions and economy, it is and ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and research.

  • 9.7’’ LCD Screen,resolution 1024*768
  • 5.0M CMOS Image Sensor built-in
9.7" LCD Pad with Andriod System of MLP.003052
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU 1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System
RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser 1/2.5" CMOS, Color, Aptina MT9P001
Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface

Specification of Main Body
Specification
Main Body of MLP.003052
Head
Sliding Trinocular Head, 45° Inclined, 360° Rotatable
Eyepiece
WF10x/18mm
WF10x/18mm, With Scale Of Crosshair
Objective
Strain Free Achromatic Objective 4x
Strain Free Achromatic Objective 10x
Strain Free Achromatic Objective 40x
Strain Free Achromatic Objective 60x
Nosepiece
Outward Quadruple Nosepiece
Analyzer
Rotatable Analyzer With Graduation 0~90°
Bertrand Lens, Sliding In/Out Of Optical Path
Optical Compensator :
1) λ Slip, First Class Red
2) 1/4λ Slip
3) Quartz Wedge
Focusing
Coaxial Coarse & Fine Adjustment, Focusing Range 28mm, Fine Focusing Division 0.002mm
Stage
Round Stage Dia.145mm, 360° Rotatable, Graduation 1° Increment, Minimum Resolution 6', Center Adjustable
Condenser
Abbe Condenser N.A.1.25, WIth Iris Diaphragm & Filter
Polarizer
Swing-Out Polarizer 0~90° Rotatable, Located On Top Of Collector
Illumination
Halogen Lamp 6V20W, Brightness Adjustable
