MDM.019005 WIFI Digital Portable Metallurgical Kits
|
Total Magnification |
100X~500X |
Eyepiece |
WF10X/FN18, Dia 23.2
|
LWD Plan Objective (no cover glass)
|
PLL 50X/0.65 WD=0.5mm |
PLL 10X/0.25 WD=7.3mm |
Mechanical Tube Length
|
160mm
|
Focusing
|
Coaxial coarse/fine focus system, range:36mm
|

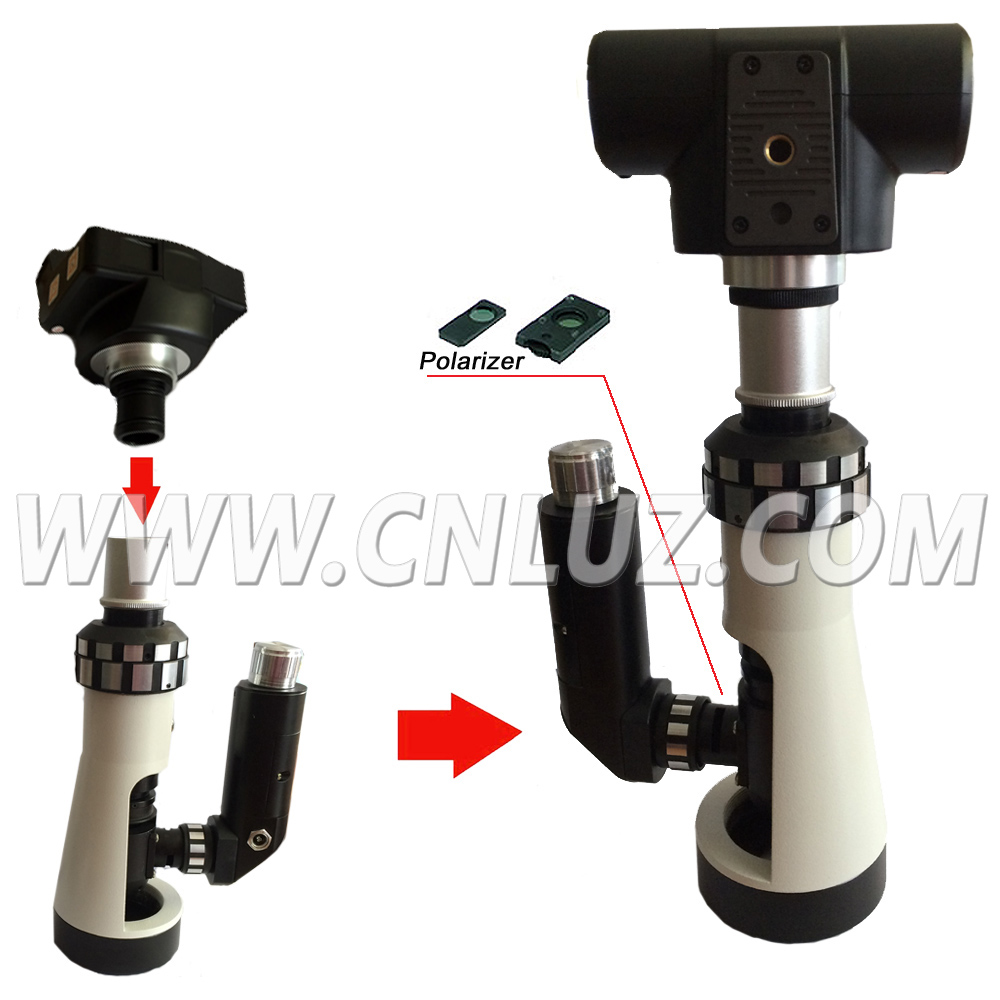

Polarizing Kits |
Polarizer and Analyzer |
Light Source |
Coaxial illumination, build-in LED rechargeable, brightness adjustable |

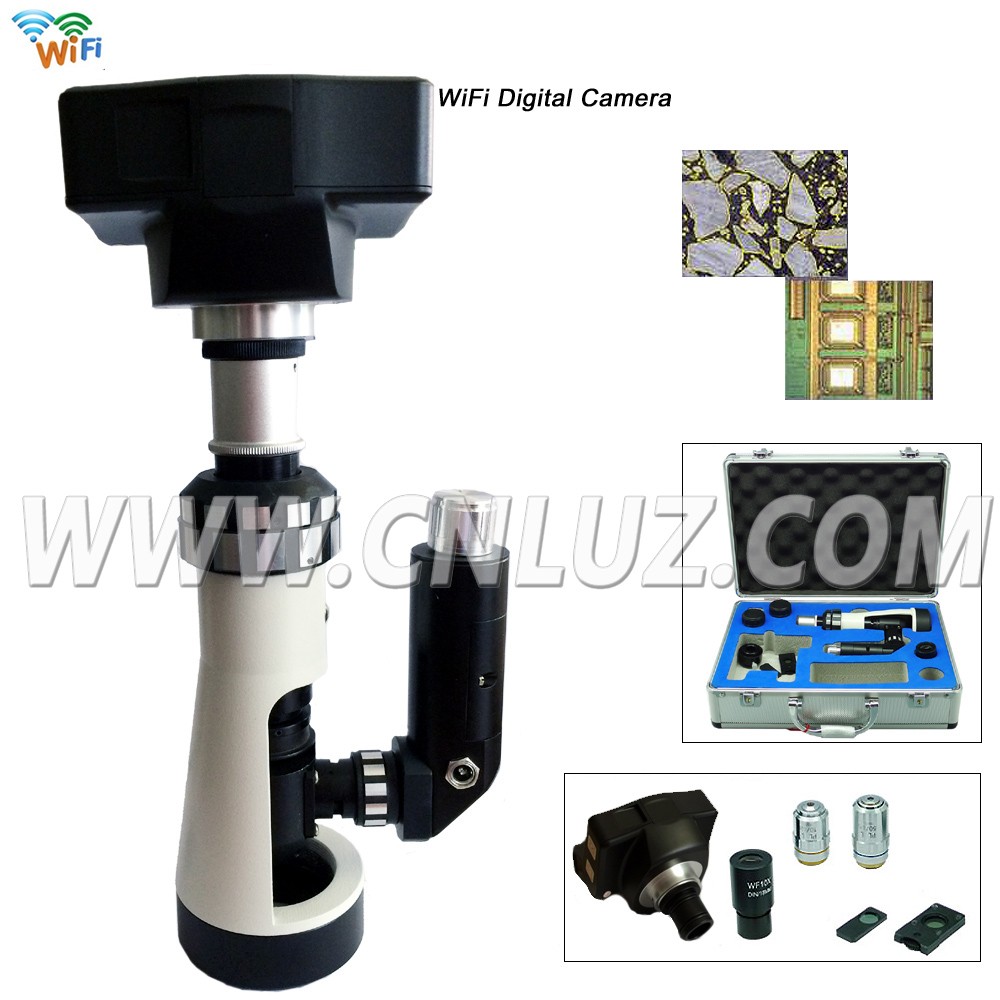

WIFI Digital Camera |
Pixel
|
5.0M
|
Max Resolution
|
2592x1944
|
Pixel Size
|
2.4um x 2.4um
|
|
1/1.8"
|
|
5.70x4.28
|
Sensitivity(@550nm)
|
0.53v/lux-sec
|
DynamicRange
|
70.1dB
|
SN Ratio
|
38.1dB
|
Frame Rate |
YUV output: 640x480@30fps,800x600@20fps,1280x960@10fps, 1280x720@10fps,2592x1944@5fps MJPG output: 640x480@40fps,800x600@40fps,1280x960@40fps, 1280x720@40fps,2592x1944@30fps |
Exposure
|
Manual/Auto, .9ms - 320ms
|
Output
|
WIFI, LAN
|
A/D Conveter
|
12-bit on chip,10-bit to pc
|
White balance
|
Automatic White Balance/Automatic Exposure
|
Packing info |
Portable aluminium case |
|
